Floor Framing Optioneering

Common floor framing options for building structures and other structures, such as composite decks, concrete slabs and timber CLT slabs
Sat 14th Feb 2026 by ilyas

A few common floor framing options are shown below. This is not intended to be an exhaustive list but a general guide to help budding structural engineers.


Common Floor Framing Options

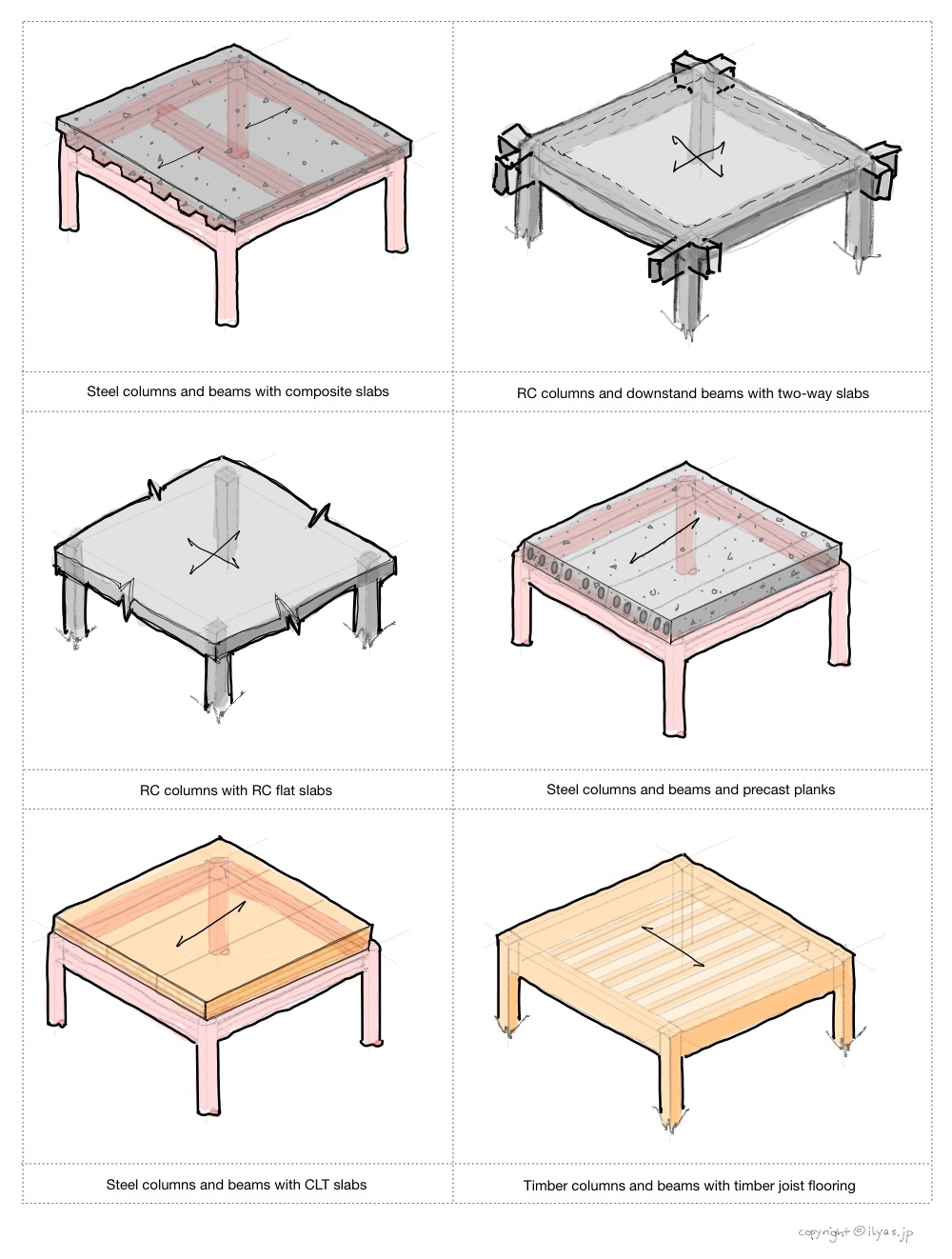

Common structural floor framing solutions

p.s. there is a slight error in the image above showing the timber joist floor span direction, the span direction should be parallel to the joists. I will correct this in due course.


Last Update 15/02/26 08:12 JST


1 person found this article helpful.
